Chicago
Regular price $92.00 USD Sale price $46.00 USDShips in 2-3 business days

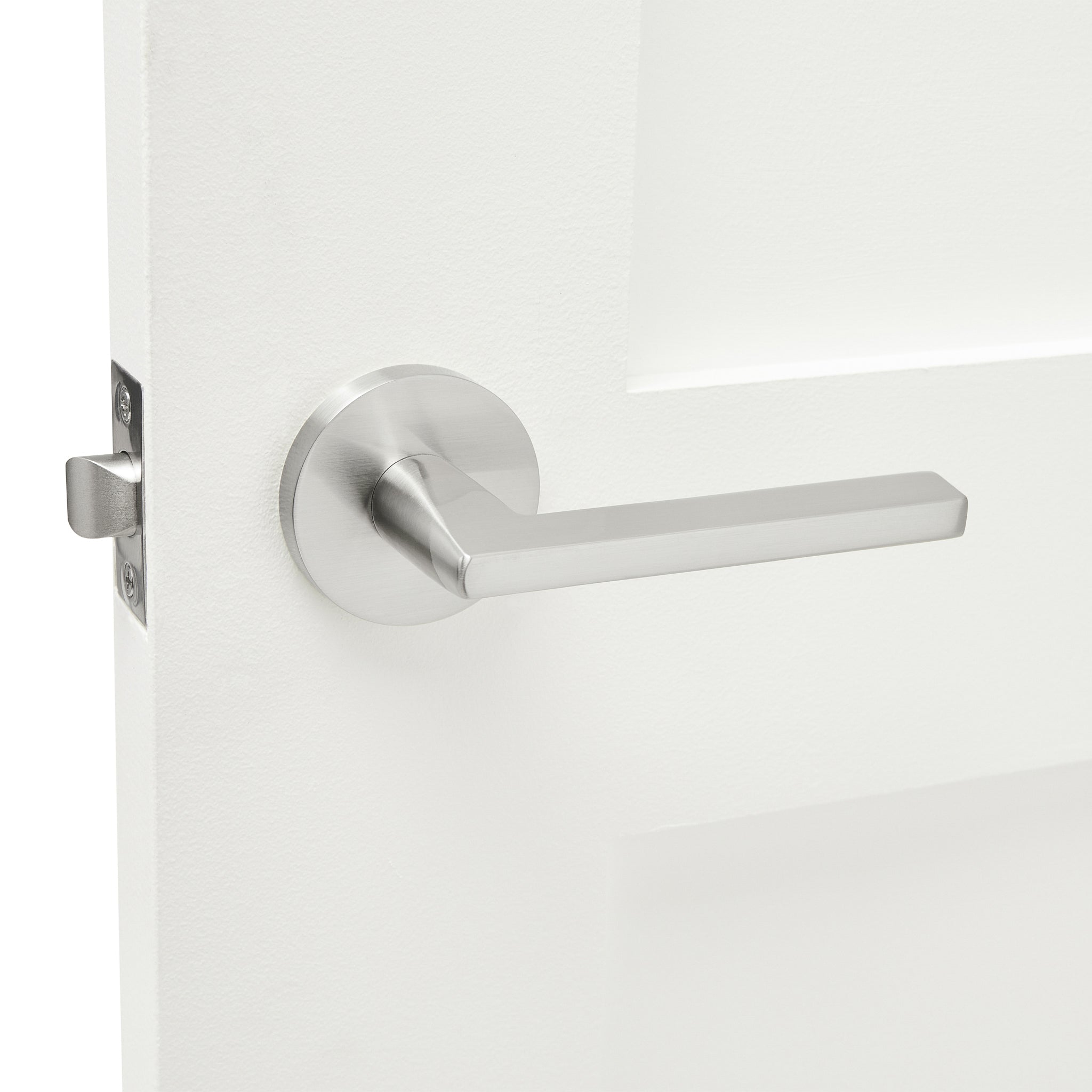

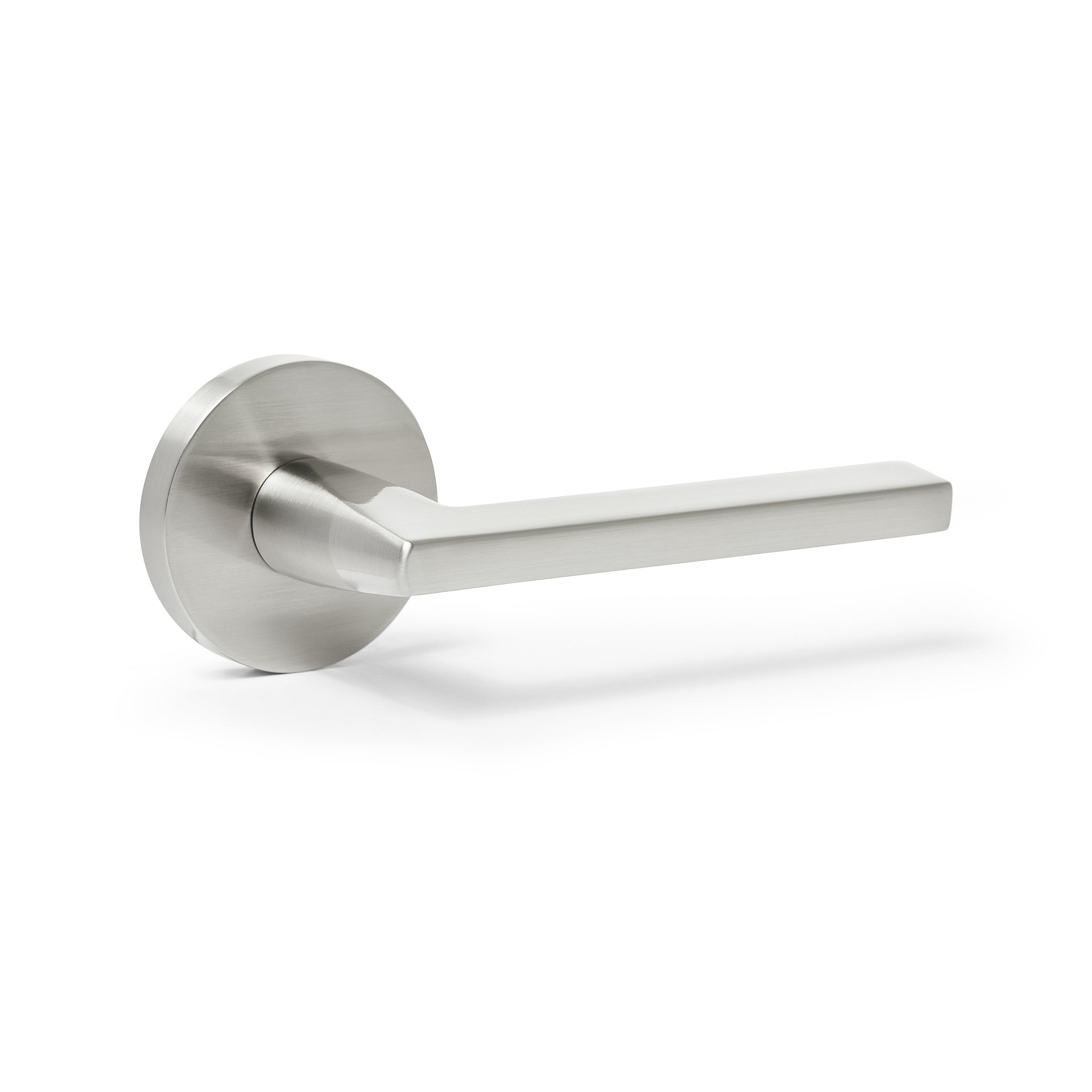

This door handle has a contemporary style and it is paired with our round rose/backplate. The lever smooth edges. The finish is satin silver.
Base materials of this item can include: Solid Brass, solid Zinc and/or solid Zamak. All our items are constructed with solid materials for the best quality and durability and then electroplated for the final finish.
All our door handles are reversible, they are designed to function on both right- and left-handed doors.

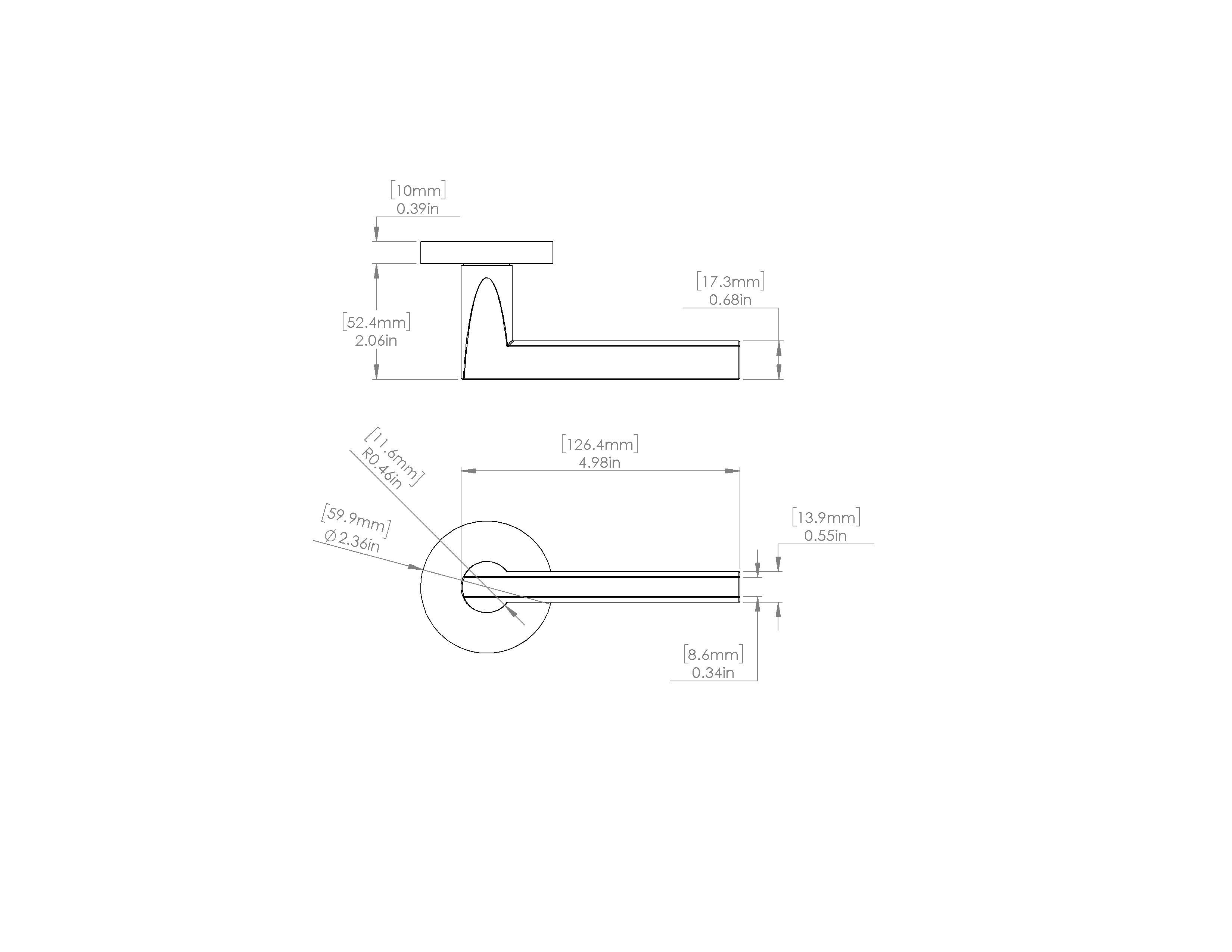

| Rose/Plate measurement | 60MM |
|---|---|
| Door thickness | 1 3/8’’ to 2’’ |
| Backset | Non adjustable. Must choose between 2 3/8’’ or 2 3/4’’ |
| Tubular latch | Standard D- Strike and Square Faceplate |
| Door preparation | 2 1/8'' standard bore hole with tubular latch with square faceplate |
| Screws | 2 Phillips head metal screws visible from the inside and non-visible from the outside |
| Installation time | 5-10 Minutes |
| Tools required | Phillips head screwdriver |
| Door Handing | Lever sets are not handed |

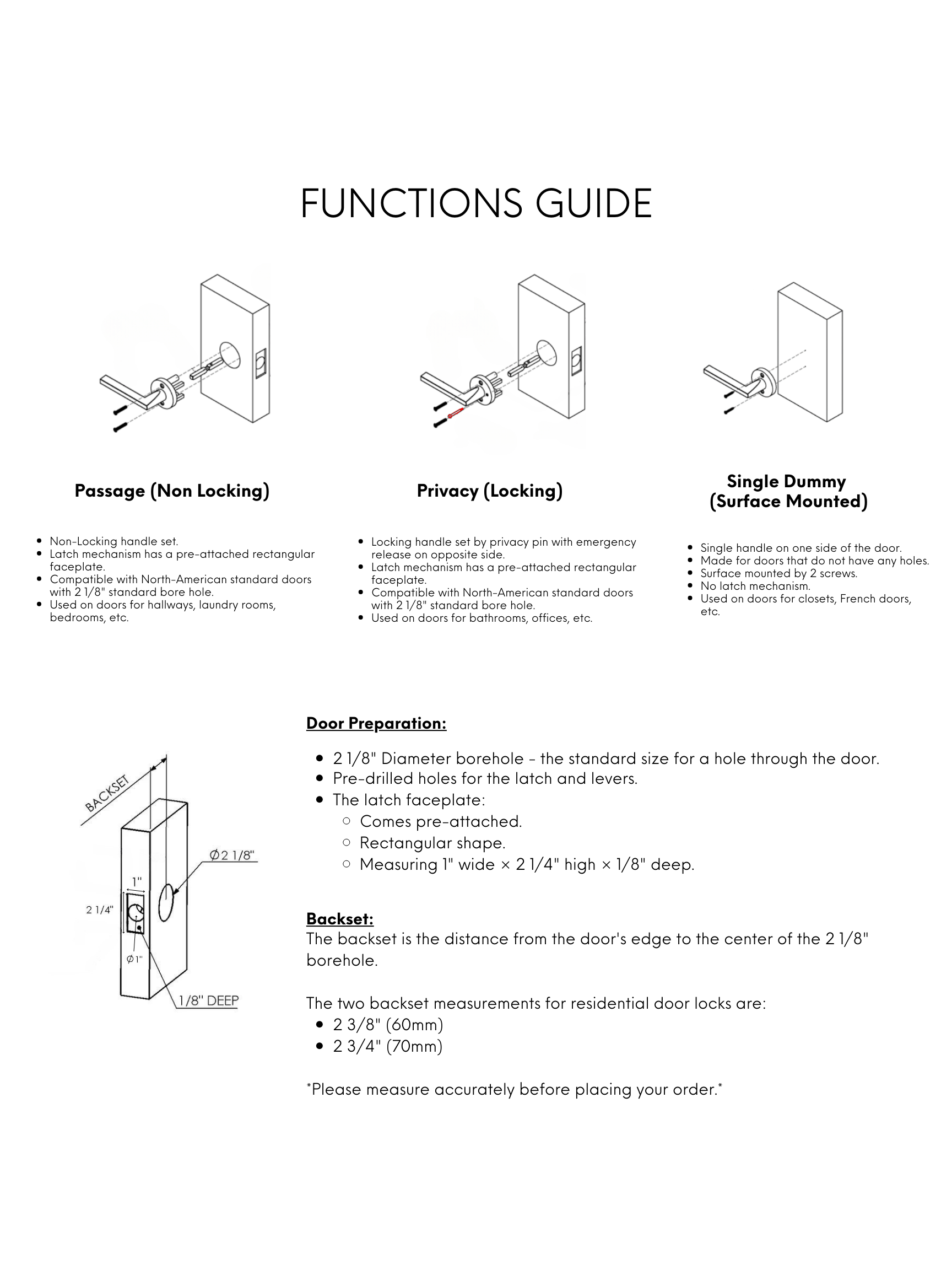

* Please consult our door function, backset and door preparation chart in the image files *

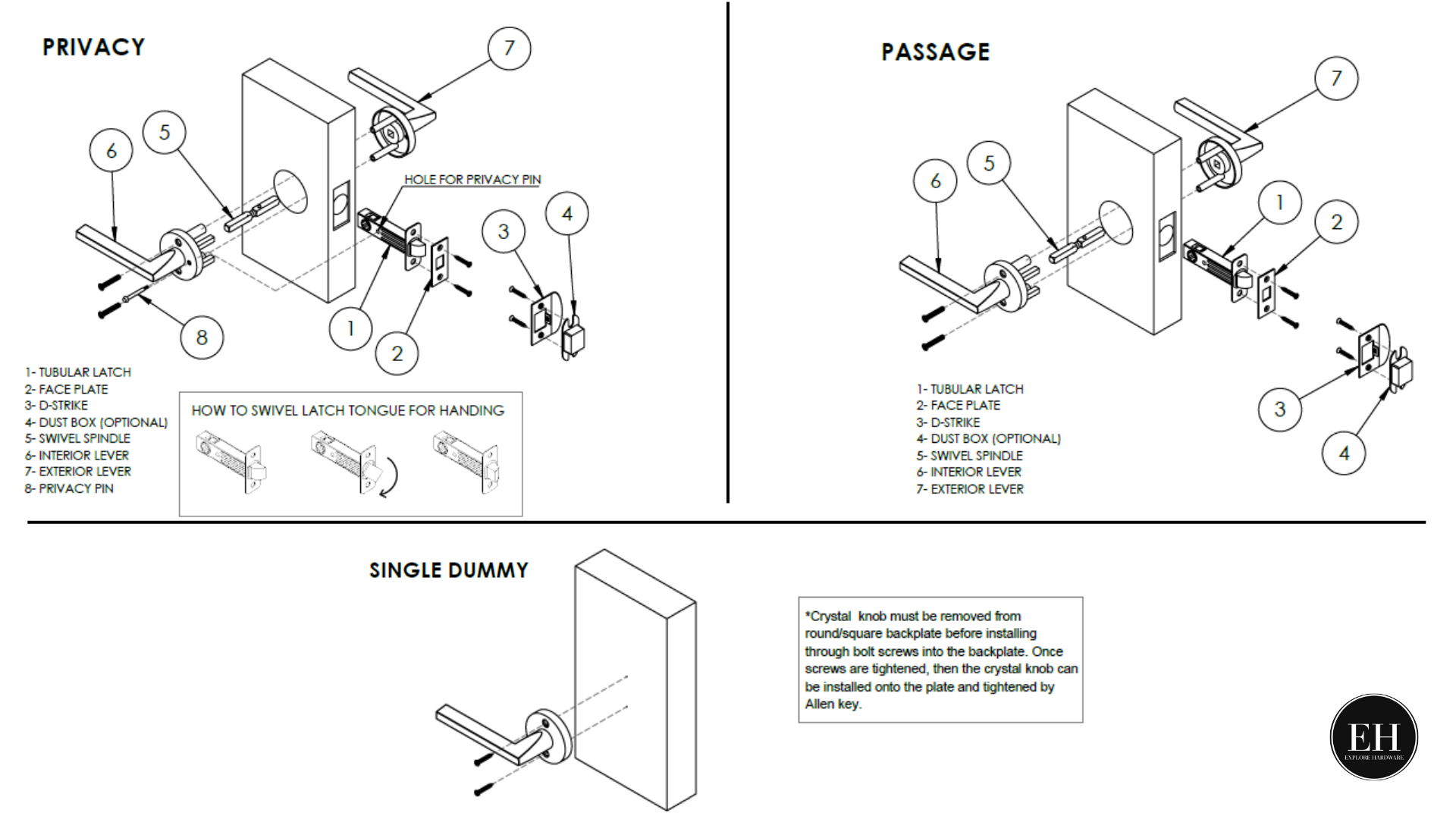

PASSAGE (Non-Locking)
- 2 Handles (backplate/rose attached)
- 1 Tubular Latch Mechanism 2 3/8" (60MM) OR 2 3/4" (70MM) backset
- 1 D Strike with screws (Same finish as the handle)
- 1 Face plate with screws (Same finish as the handle)
- 4 Through bolt screws for 1 3/8" (35mm) to 2" (51mm) door thickness
PRIVACY
- 2 Handles (backplate/rose attached)
- 1 Privacy pin (Same finish as the handle)
- 1 Tubular Latch Mechanism 2 3/8" (60MM) OR 2 3/4" (70MM) backset
- 1 D Strike with screws (Same finish as the handle)
- 1 Face plate with screws (Same finish as the handle)
- 4 Through bolt screws for 1 3/8" (35mm) to 2" (51mm) door thickness
SINGLE DUMMY (Surface Mounted)
- 1 Handle (backplate/rose attached)
- 2 Screws for surface mounting rose backplate
- All our door handles are reversible; they are designed to function on both right- and left-handed doors.
