Rio

Name: Rio
Brand: Explore Hardware
Price: 60.0 USD
Availability: InStock

$92.00 USD $60.00 USD

Ships in 2-3 business days

Select Finish:

Select Function: Learn more

Function

Passage

Privacy

Single Dummy

Select Backset: Learn more

Backset

2 ⅜"

2 ¾"

Quantity

Free shipping over $99

[{"id":44881923440857,"title":"Passage \/ 2 ⅜\"","option1":"Passage","option2":"2 ⅜\"","option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Rio - Passage \/ 2 ⅜\"","public_title":"Passage \/ 2 ⅜\"","options":["Passage","2 ⅜\""],"price":6000,"weight":0,"compare_at_price":9200,"inventory_management":"shopify","barcode":"839849000410","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44881923473625,"title":"Passage \/ 2 ¾\"","option1":"Passage","option2":"2 ¾\"","option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Rio - Passage \/ 2 ¾\"","public_title":"Passage \/ 2 ¾\"","options":["Passage","2 ¾\""],"price":6000,"weight":0,"compare_at_price":9200,"inventory_management":"shopify","barcode":"839849000410","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44881923539161,"title":"Privacy \/ 2 ⅜\"","option1":"Privacy","option2":"2 ⅜\"","option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Rio - Privacy \/ 2 ⅜\"","public_title":"Privacy \/ 2 ⅜\"","options":["Privacy","2 ⅜\""],"price":6000,"weight":0,"compare_at_price":9200,"inventory_management":"shopify","barcode":"839849000441","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44881923571929,"title":"Privacy \/ 2 ¾\"","option1":"Privacy","option2":"2 ¾\"","option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Rio - Privacy \/ 2 ¾\"","public_title":"Privacy \/ 2 ¾\"","options":["Privacy","2 ¾\""],"price":6000,"weight":0,"compare_at_price":9200,"inventory_management":"shopify","barcode":"839849000441","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44881923604697,"title":"Single Dummy \/ 2 ⅜\"","option1":"Single Dummy","option2":"2 ⅜\"","option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Rio - Single Dummy \/ 2 ⅜\"","public_title":"Single Dummy \/ 2 ⅜\"","options":["Single Dummy","2 ⅜\""],"price":4100,"weight":0,"compare_at_price":6300,"inventory_management":"shopify","barcode":"839849000472","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44881923637465,"title":"Single Dummy \/ 2 ¾\"","option1":"Single Dummy","option2":"2 ¾\"","option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Rio - Single Dummy \/ 2 ¾\"","public_title":"Single Dummy \/ 2 ¾\"","options":["Single Dummy","2 ¾\""],"price":4100,"weight":0,"compare_at_price":6300,"inventory_management":"shopify","barcode":"839849000472","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Description

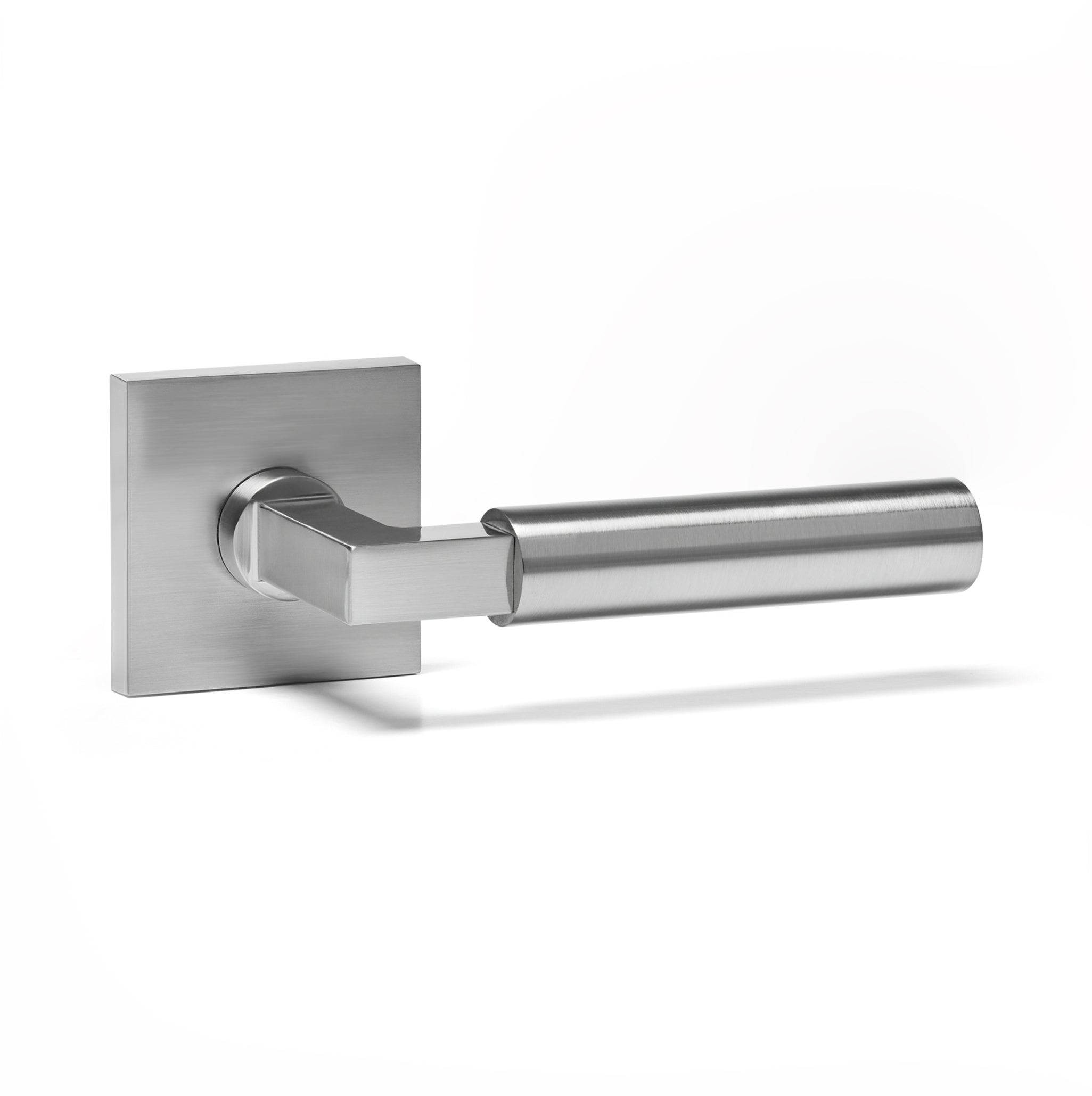

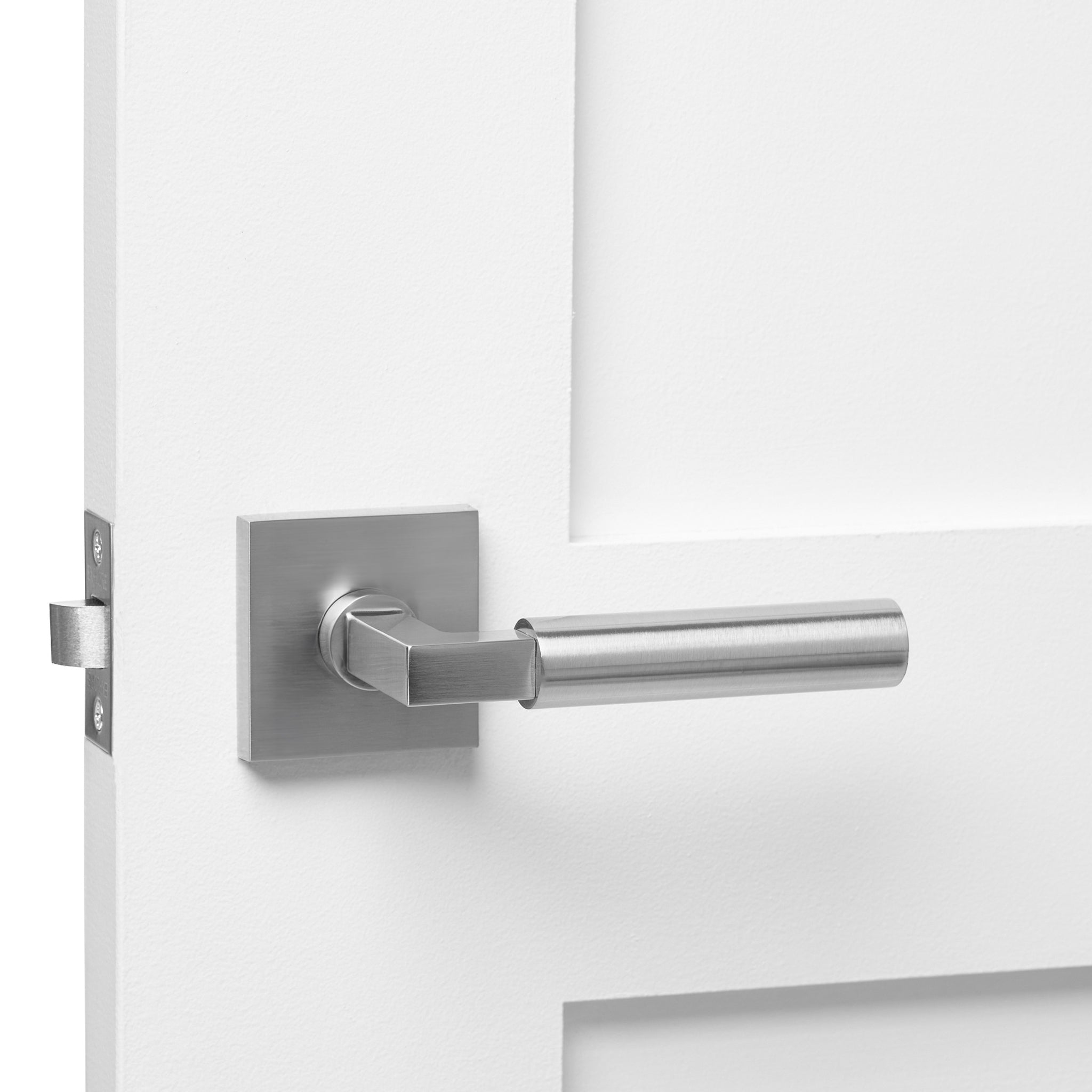

This contemporary door handle set features a sleek design, complemented by a square rose/backplate. The lever boasts a solid casted round cylinder with smooth edges, all finished in satin silver for a modern touch.

Base materials of this item can include: Solid Brass, solid Zinc and/or solid Zamak. All our items are constructed with solid materials for the best quality and durability and then electroplated for the final finish.

All our door handles are reversible, they are designed to function on both right- and left-handed doors.

Specifications

Rose/Plate measurement	60MM
Door thickness	1 3/8’’ to 2’’
Backset	Non adjustable. Must choose between 2 3/8’’ or 2 3/4’’
Tubular latch	Standard D- Strike and Square Faceplate
Door preparation	2 1/8'' standard bore hole with tubular latch with square faceplate
Screws	2 Phillips head metal screws visible from the inside and non-visible from the outside
Installation time	5-10 Minutes
Tools required	Phillips head screwdriver
Door Handing	Lever sets are not handed

California Residents Prop 65 Warning

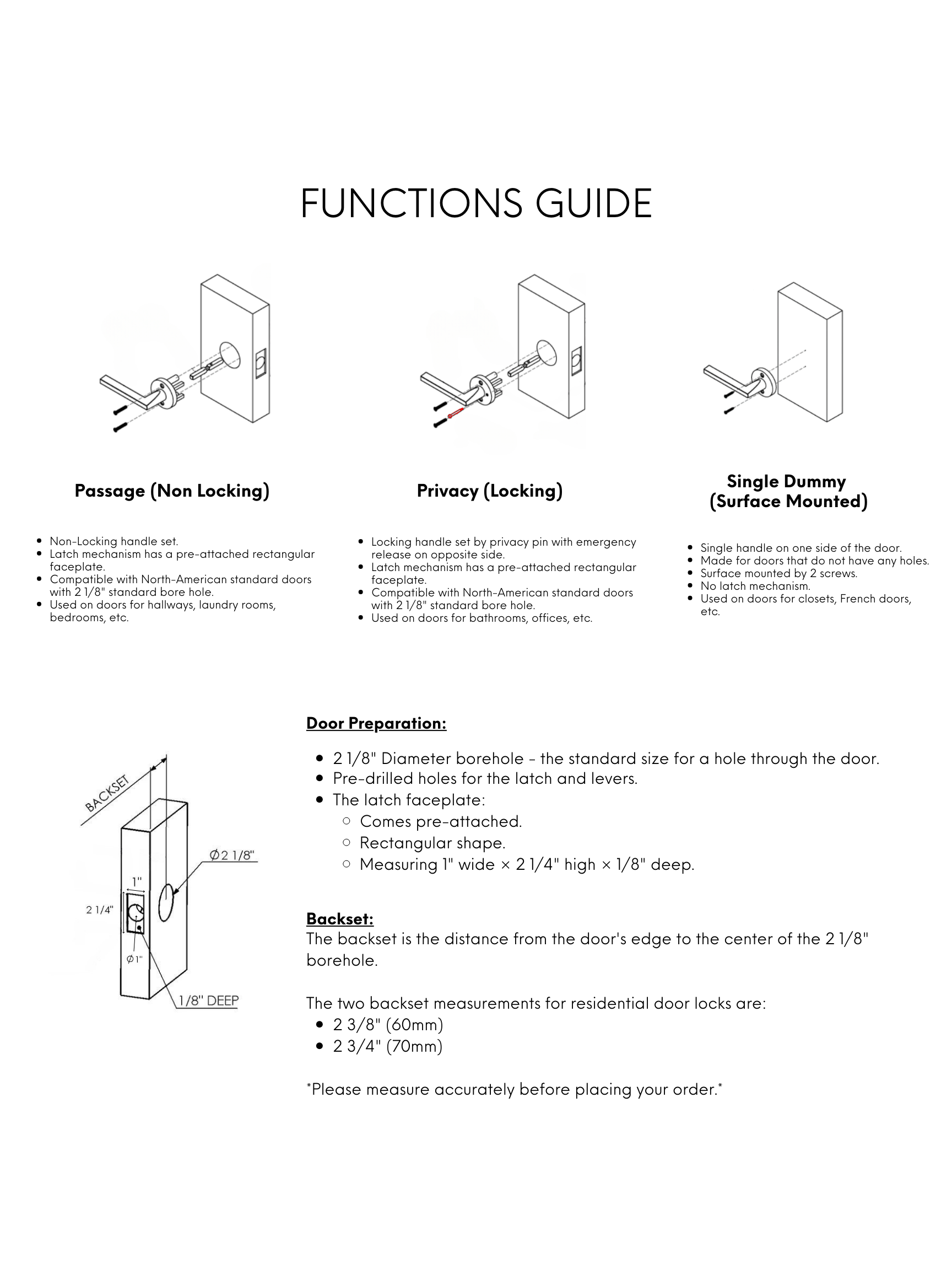

* Please consult our door function, backset and door preparation chart in the image files *

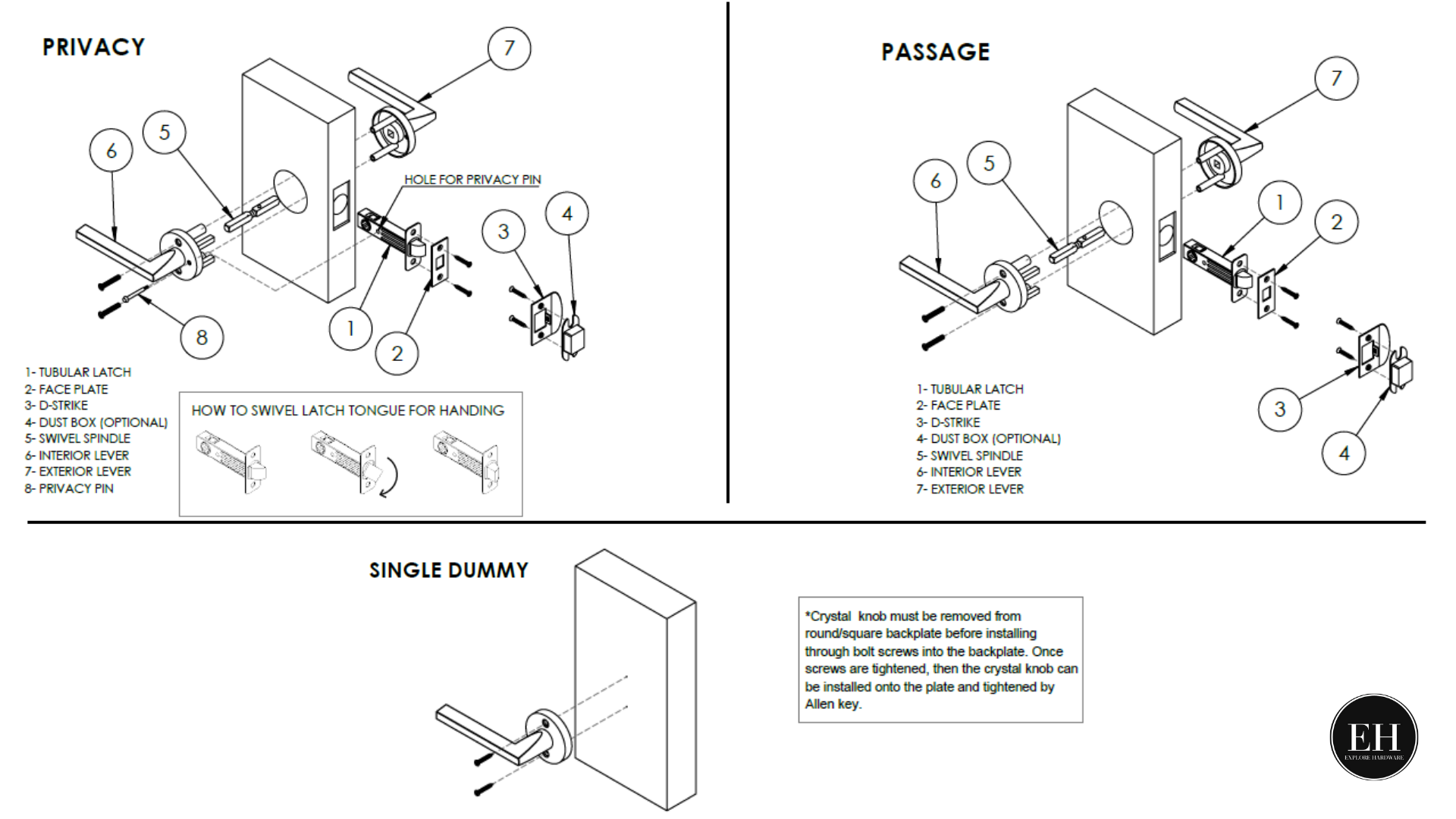

Functions & what’s in the box

PASSAGE (Non-Locking)

2 Handles (backplate/rose attached)
1 Tubular Latch Mechanism 2 3/8" (60MM) OR 2 3/4" (70MM) backset
1 D Strike with screws (Same finish as the handle)
1 Face plate with screws (Same finish as the handle)
4 Through bolt screws for 1 3/8" (35mm) to 2" (51mm) door thickness

PRIVACY

2 Handles (backplate/rose attached)
1 Privacy pin (Same finish as the handle)
1 Tubular Latch Mechanism 2 3/8" (60MM) OR 2 3/4" (70MM) backset
1 D Strike with screws (Same finish as the handle)
1 Face plate with screws (Same finish as the handle)
4 Through bolt screws for 1 3/8" (35mm) to 2" (51mm) door thickness

SINGLE DUMMY (Surface Mounted)

1 Handle (backplate/rose attached)
2 Screws for surface mounting rose backplate
All our door handles are reversible; they are designed to function on both right- and left-handed doors.
